Credit Card Processing

Server To Server

To process a transaction using txprocess, send parameters with HTTP/ HTTPS POST (query string format) to https://office.paywiser.com/api/v1/index.php/{sid}/singletx

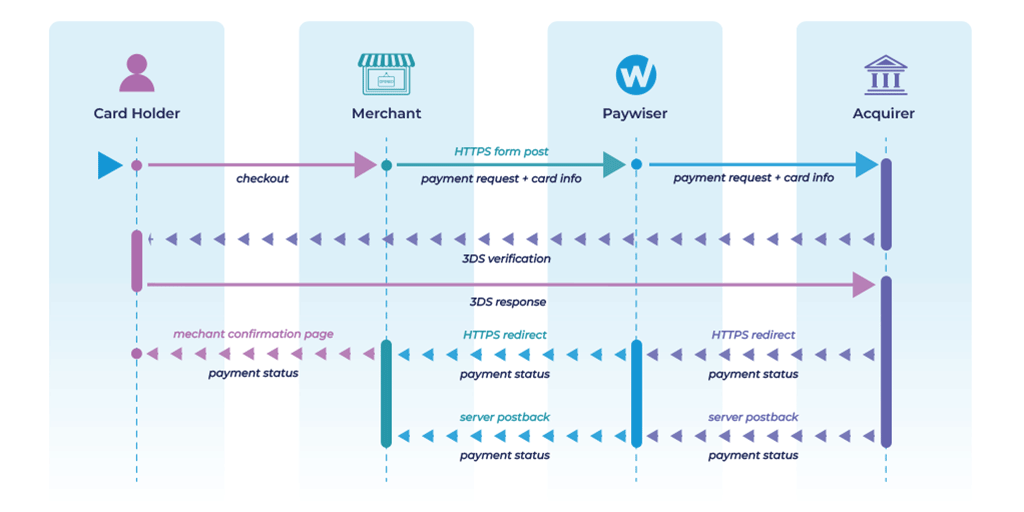

Payment Flow Diagram
Payment Flow Diagram

HTTP Request

POST https://office.paywiser.com/api/v1/index.php/{sid}/singletx

Query Parameters

Table of query parameters information
Parameter Required Description
sid Yes Site id (unique identifier for the web site)
tid No Tracking id (must be unique for each transaction)
postback_url Yes The URL of the page used to recieve the TxHandler postback. The response can be read from $_POST array.
redirect_url No Only required for 3D flow
hash Yes md5 hash of strings concatenation from sid + timestamp + amounttotal + currency + rcode e.g. (in PHP): md5(‘22’.‘1234568995265421’.‘17.00’.‘CNY’.‘222b6c’) REMARK : amounttotal = (item_amount_unit * item_quantity ) + amount_shipping + amount_tax – amount_coupon
timestamp Yes Format : hhmmss
card_type Yes • allcard
card_no Yes Credit card number, In case of double acquiring payment it will be the transaction reference from the authorize transaction and no need for the rest card info.
cart_exp_year condition 4-digityear expiration of the credit card.(e.g. 2020)
card_exp_month condition 2-digitmonth expiration of the credit card. (eg. 05 – May)
card_ccv condition CVV/CVC2 credit card verification code
firstname Yes Frist name of the customer
lastname Yes Last name of the customer
phone Yes 10 to 14 numeric digits
email Yes Customer’s email address
mobile Yes Mobile number
address Yes Customer address
suburb_city Yes Customer suburb or city
state Yes Customer state, 2 digit code for US/Canada
postcode Yes Customer postcode/zipcode
country Yes Customer country, ISO 3166 2 digit code
uip Yes Customer’s IPaddress.
currency Yes Transaction currency[currency in which the gateway is setup], ISO 3 letter code ie : USD
amount_shipping Yes Transaction shipping amount. 0.00 if nothing
amount_coupon Yes Coupon amount. 0.00 if nothing
amount_tax Yes Transaction shipping amount. 0.00 if nothing
item_quantity[] Yes Quantity of each cart item
item_name[] Yes Article names for each cart item
item_no[] Yes Article numbers for each cart item
item_desc[] Yes Descriptions for each cart item
item_amount_unit[] Yes Price per unit for each cart item in two decimal place
ref1 No Merchant reference field
ref2 No Merchant reference field
ref3 No Merchant reference field
ref4 No Merchant reference field
tx_action No Value : “PAYMENT”
addinfo No Json string with below data:
  • browserscreenheight: Total height of the Cardholder's screen in pixels.
  • browserscreenwidth: Total width of the Cardholder's screen in pixels.
  • browsertz: Time difference between UTC time and the Cardholder browser local time, in minutes.
Example: {"browserscreenheight":"800","browserscreenwidth":"600","browsertz":"01"}

Instant Response

Table of instant response information
Parameter DataType Description
sid String Has the sid where transaction was processed
status String OK – successful , EXC – failed , REQ – pending for 3D authentication. Only for 3D channel
parrent_txid String Parent transaction id
txid String The transaction ID
tx_action String Default Value - PAYMENT
amount String The amount processed.
currency String The currency in which the transaction was processed
comment String Description of the transaction
descriptor String Gateway descriptor name
error[type] String “WAIT3D” - Only for 3D channel
error[msg] String “Awaiting 3DSecure” - Only for 3D channel
error[info][webUrl] String 3Ds url – please redirect user to the url given for the 3Ds authentication. Only for 3D channel

Postback Response

Table of postback response information
Parameter DataType Description
sid String Has the sid where transaction was processed
status String Has the value “OK” for a successful transaction, or “EXC” for a failed transaction.
parrent_txid String Parent transaction id
txid String The transaction ID
tx_action String Tx_action = PAYMENT
amount String The amount processed.
currency String The currency in which the transaction was processed
comment String Response from the gateway
descriptor String Gateway descriptor name
tid String From the original transaction
error String If an error has occurred, then the status value will equal “EXC” and these parameters will be sent as well. Detailed error will be present only if we receive it from the processing gateway.
error_type String “WAIT3D” - Only for 3D channel
error_msg String The error message
error_sys String The system that caused the error (client or server)
error_info String Error information that contains the bank message and bank code
error_code String error_code
vrfy String This is a sha 256 hash so the data can be verified to ensure your post back data was not modified. To generate hash with sha256 the string of sid;rcode;txid;status;amount;currency;txaction

Redirect Solution

To process a transaction using TxHandler, post a form via HTTP POST to https://office.paywiser.com/secure/txHandler.php. During the transaction, the user will be redirected to make payment and then send back to a user defined location and the result of the transaction can be received as postback to a user defined script/page

Refund Process via API

HTTP Request

POST https://office.paywiser.com/api/v1/index.php/{ptxid}/refund

Request Parameters

Table of request Parameters response information
Name Required (Yes or No) Description
ptxid Yes Parent transaction id
sid Yes Site id (unique identifier for the web site)
hash Yes md5 hash of sid+timestamp+amount+currency+rcode
Example: md5('22'.'1234568995265421'.'17.00'.'CNY'.'222b6c')
postback_url Yes The URL of the page used to receive the TxHandler postback. The response can be read from the $_POST array.
timestamp Yes Format: hhmmss, same value that is used to generate the hash
currency Yes Refund amount currency. Example: JPY
amount Yes Refund amount with 2 decimals
tx_action Yes Value is REFUND

Instant Response

Instant response will be sent once the refund request received by system.
Name Data Type Description
status String EXC – Refund Request failed
PEND – Refund Request Pending Approval
txid String The transaction ID
error String If an error has occurred, then the status value will equal "EXC" and these parameters will be sent as well. Detailed error will be present only if we receive it from the processing gateway.
error_type String Error type
error_sys String The system that caused the error (client or server)
error_msg String Refund Submitted
error_info String Error information that contains the bank message and bank code
error_code String Error code
comment String Status OK - Refund Submitted
Status EXC – Reason of Failure

Instant Response

The transaction is completed when you receive the response with tx_action=REFUND. The response will be sent to the postback_url given in the post.

Name Data Type Description
sid String Has the sid where transaction was processed
status String Has the value "OK" for a successful transaction, or "EXC" for a failed transaction.
parent_txid String Parent transaction id
txid String The transaction ID
tx_action String Tx_action = REFUND
amount String The amount processed
currency String The currency in which the transaction was processed
comment String Response from the gateway
descriptor String Gateway descriptor name
tid String From the original transaction
error String If an error has occurred, then the status value will equal "EXC" and these parameters will be sent as well. Detailed error will be present only if we receive it from the processing gateway.
error_type String error_type
error_sys String The system that caused the error (client or server)
error_msg String The error message
error_info String Error information that contains the bank message and bank code
error_code String error_code
vry String $sid;$rcode;$txid;$status;$amount;$currency;$txaction

Appendix A : Testing Credit Cards (Redirect solution)

VISA MASTERCARD Asynchronous Response Postback Response
4111111111111111 5105105105105100 SUCCESS SUCCESS
4532093145083303 5154246427959145 WAIT3D SUCCESS
4012888888881881 5555555555554444 PENDING SUCCESS
4917610000000000 5431111111111228 FAIL FAIL
4444333322221111 5427660064241339 WAIT3D FAIL
4999999999999236 5123459046058920 PENDING FAIL

Test Cards for 3D (S2S solution)

Please use the test cards below in order to test Secure Token in test mode.

The following fields are required when performing a test transaction.

  • payment_details[name] : Test Card
  • payment_details[month] : 08
  • payment_details[year] : 2025

Authentication success

These card numbers can be used to complete a transaction without an authentication challenge.

Card Number Type
4100000000000100 Visa
5100000000000107 Mastercard
3528000000000106 JCB

Authentication success with second authentication

These card numbers can be used to test transactions with a password challenge via paymentinfo URL Please use 123456 to pass the second authentication.

Card Number Type
4100000000005000 Visa
5100000000005007 Mastercard
3528000000005006 JCB

Authentication rejected

These card numbers can be used to test a rejected authentication after accessing paymentinfo URL and being redirected to return_url.

Card Number Type
4100000000500000 Visa
5100000000500007 Mastercard
3528000000500006 JCB

Authentication failed on second authentication

These card numbers can be used to test transactions with a challenge password. Please use 111111 to simulate a failed authentication.

Card Number Type
4100000000300005 Visa
5100000000300002 Mastercard
3528000000300001 JCB
